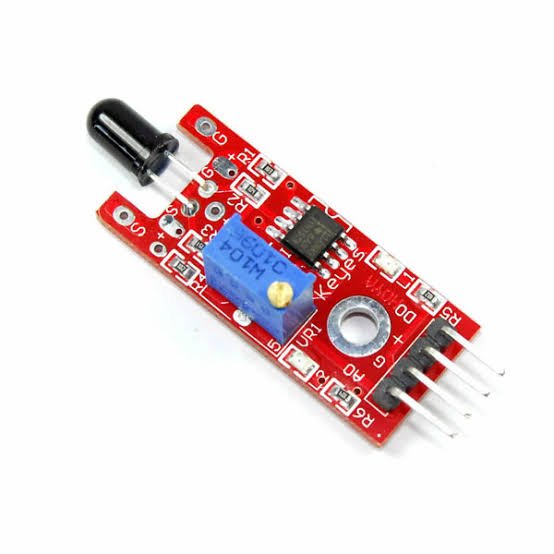

Flame Sensor Module (KY-026)
The KY-026 Flame Sensor Module is an infrared flame detection module designed to detect flames or fire sources by sensing infrared light in the 760 nm to 1100 …
This item is currently out of stock. Save it to your wishlist and we'll have it back soon, or message us on WhatsApp to ask about restock timing.
Product Description
Overview
The KY-026 Flame Sensor Module is one of the most commonly available flame detection modules from Chinese manufacturers. It is based on a high-sensitivity infrared photodiode and an LM393 voltage comparator, allowing it to provide both analog signal output and an adjustable digital output.
The onboard potentiometer lets users adjust the flame detection threshold, while indicator LEDs provide power and detection status. Due to its simple interface and reliable flame sensing, it is widely used in fire alarm systems, robotics, industrial monitoring, and educational electronics projects.
Specifications
Sensor Type: Infrared Flame Sensor
Comparator IC: LM393 Dual Voltage Comparator
Detection Wavelength: 760 nm to 1100 nm
Detection Angle: Approximately 60°
Operating Voltage: 3.3 V to 5 V DC
Current Consumption: Approximately 15 mA
Output Type: Analog Output (AO), Digital Output (DO)
Digital Output Level: LOW when flame is detected, HIGH when no flame is detected
Sensitivity Adjustment: Onboard Potentiometer
Interface: VCC, GND, AO (Analog Output), DO (Digital Output)
Indicator LEDs: Power LED, Detection Status LED
Module Operating Temperature: -25°C to +85°C
PCB Dimensions: Approximately 36 × 16 mm
Weight: Approximately 3–5 g
